What is SpaceMining?
SpaceMining is a single-agent reinforcement learning environment simulating asteroid mining in a 2D space environment. The agent (mining robot) must collect resources from asteroids, deliver them to the mothership, manage energy consumption, and avoid moving obstacles while maximizing efficiency.
Research Purpose
This environment was specifically designed to evaluate large language models' ability to design reward functions for unfamiliar environments without prior knowledge. Recent studies have raised concerns that large language models may carry prior knowledge from pretraining data about standard RL environments (like CartPole, BipedalWalker, Ant), leading to potential prompt leakage and evaluation biases.
To address this issue, SpaceMining serves as a custom environment to assess true generalization capabilities on tasks free from such pretrained knowledge. This allows researchers to evaluate whether LLMs can effectively design reward functions for completely novel environments.
Demo: Agent Behaviors

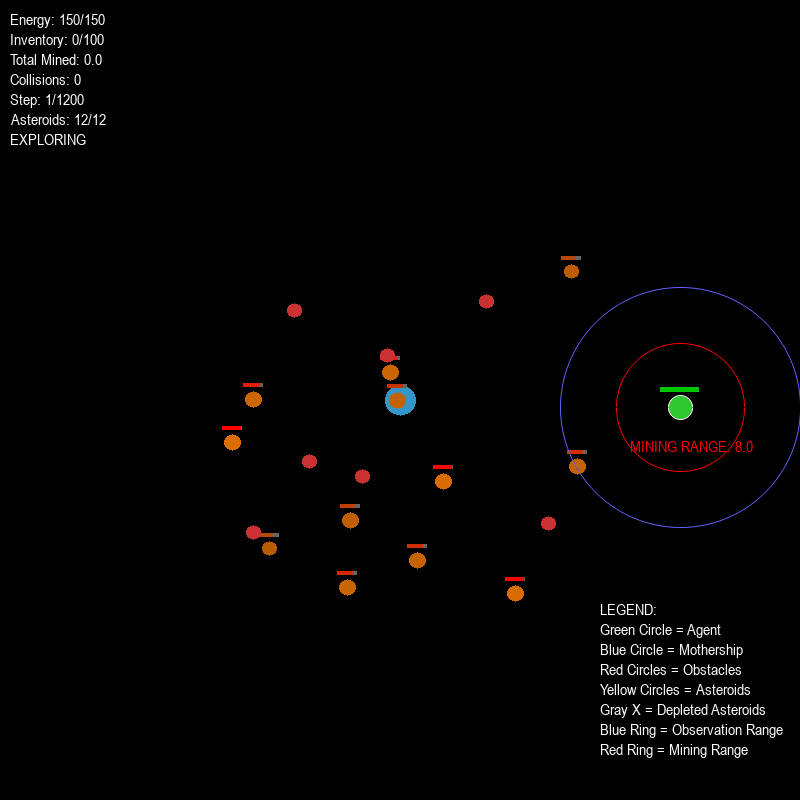

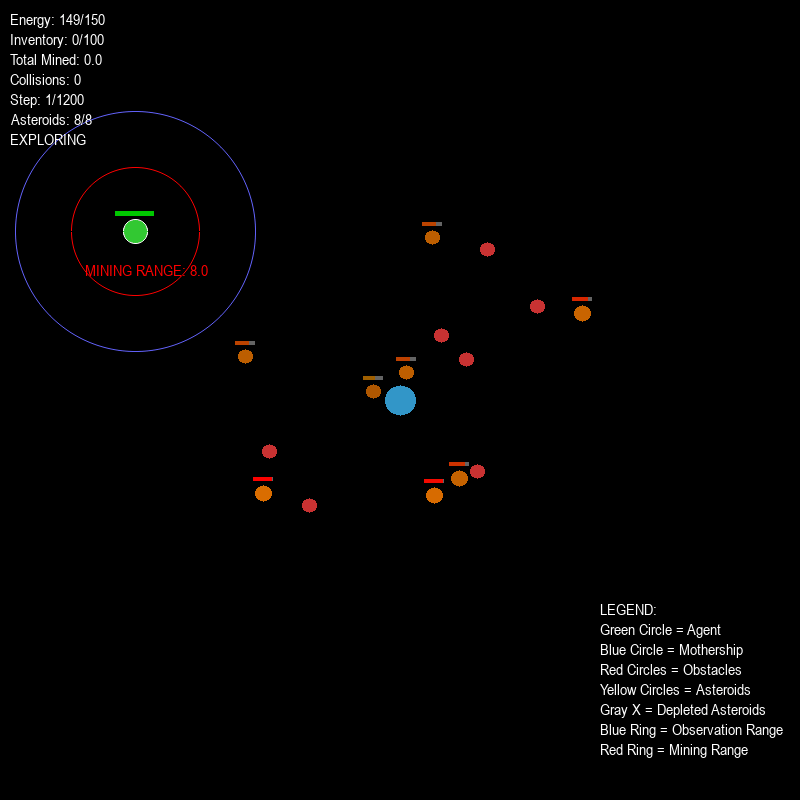

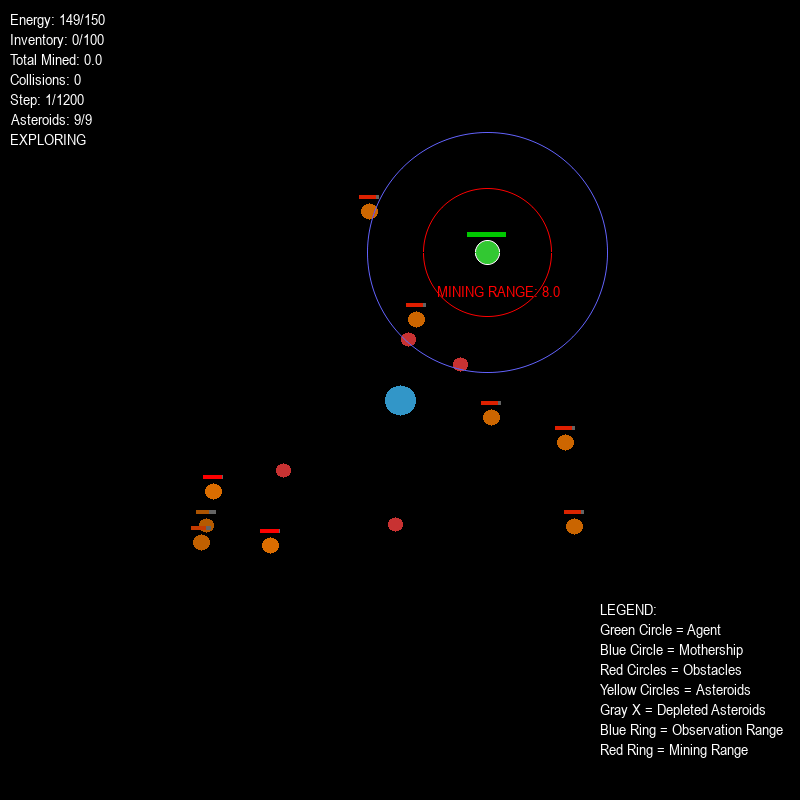

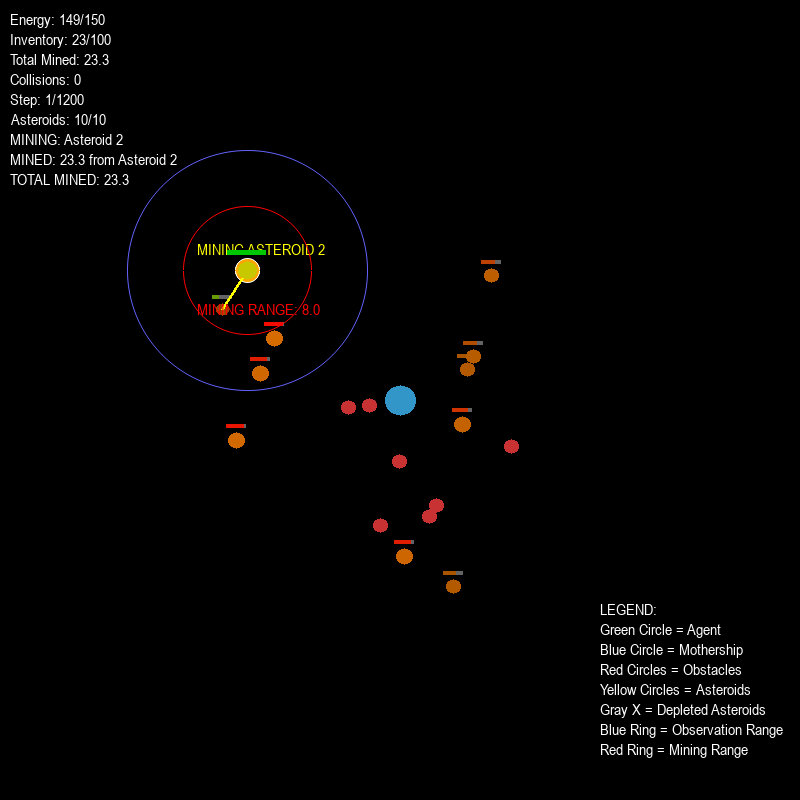

The GIF demonstrations showcase different agent behaviors and training outcomes, from successful resource collection to various failure modes and learning phases.
Visual Elements Legend
Health Bars: Green to red bars above asteroids show remaining resources
Status Display: Top-left shows inventory, energy, and step count
Features
- 2D physics-based space mining simulation with realistic movement
- Dynamic resource management and energy consumption
- Partial observability with limited observation radius
- Moving obstacles and collision detection
- Customizable reward structure and environment parameters
- Real-time visualization with health bars and status indicators
Task Description
The agent is deployed in a 2D space environment (80x80 grid) with randomly distributed asteroids and a central mothership. The agent must:
- Navigate efficiently to discover and mine resource-rich asteroids
- Manage energy consumption and return to the mothership for recharging
- Avoid collisions with moving obstacles
- Deliver resources to maximize collection efficiency
- Balance exploration and exploitation for optimal performance
The environment uses a comprehensive fitness scoring system with a target range of approximately 3000 points, evaluating resource collection, energy management, efficiency, and survival time.
Environment Specifications
State Space
The observation space includes:
- Agent State (6 dimensions): Position (x, y), velocity (vx, vy), energy level, inventory
- Asteroid Information (up to 45 dimensions): Relative positions and resource amounts for visible asteroids
- Mothership Position (2 dimensions): Relative position to mothership
Action Space
The action space is continuous with 3 dimensions:
- Thrust Control (2 dimensions): Force applied in x and y directions [-1.0, 1.0]
- Mining Action (1 dimension): Binary mining activation [0.0, 1.0]
Difficulty Level
Medium Difficulty: The environment presents a balanced challenge with:
- Limited observation radius (15 units) requiring strategic exploration
- Energy management constraints requiring periodic returns to mothership
- Moving obstacles requiring collision avoidance
- Resource depletion mechanics requiring efficient mining strategies
Recommended Training Configuration
The environment is optimized for PPO and other modern RL algorithms. Here are the recommended parameters:
# Environment Parameters
max_episode_steps: 1200
grid_size: 80
max_asteroids: 12
max_resource_per_asteroid: 40
observation_radius: 15
mining_range: 8.0
max_inventory: 100
# Training Parameters
policy: MlpPolicy
learning_rate: 0.0003
total_timesteps: 3,000,000
batch_size: 64
n_steps: 2048
gamma: 0.99
gae_lambda: 0.95
clip_range: 0.2
Quick Start
Installation
Clone the repository and install dependencies:
git clone https://github.com/Lola-jo/space_mining.git
cd space_mining
pip install gymnasium numpy pygame stable-baselines3
Test Environment
python test_env.py
Train Agent
python train.py
